The VIP Gauge Parts


vip gauge

All parts are CNC machined and VIP prides itself on the high level of quality manufacturing. Quality is the focus from the first engineering review right on through to customer delivery. Nevertheless we realize that in a manufacturing environment accidents happen and your VIP Gauge may need replacement parts.

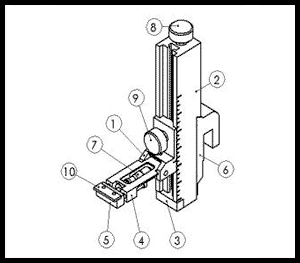

Item 1: Vertical slide with adjustment set screw
Item 2: Main Upright, mounts to 100mm dovetail
Item 3: Lower dovetail mount & threaded shaft
Item 4: Finger with set screw & flip up dowel pin
Item 5: Finger tip with shoulder bolts & springs
Item 6: Optional C-Frame mount with lock knob
Item 7: Micrometer head, ½ inch or 13mm metric
Item 8: Dovetail lock knob with ¼" female threaded end
Item 9: Slide lock knob with ¼" male threads & T-Nut
Item 10: Accessory tip .50 width with screws


mounts

Dove Tails

1.50 inch width is the same width as the VIP Gauge. Optional mounts are designed to mount to most C-Frame backstops or any vertical feature and can be easily moved into position along back stop.

$200 a set
Weight = 1lb


For replacement parts, contact us at 760-599-5050 or email us. Thank You!
